TIEPolylineLayer.AutoCurving

Declaration

property AutoCurving: Integer;

Description

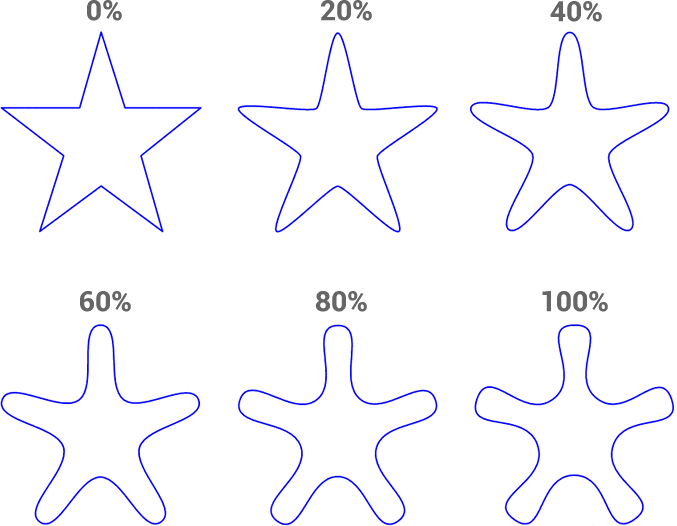

Specifies the percentage of auto-curving applied to angles of the polyline. The valid range is 0-100. 0 disables auto-curving.
This method applies cubic beziers to the polyline.



Note: AutoCurving will have no effect if EnableComplexPath = True

Default: 0 (auto-curving is disabled)

Example

// Add a "starfish" shape
ImageEnView1.LayersAdd( [ 125,0, 155,95, 250,95, 175,155, 202,250, 125,193, 48,250, 78,155, 0,95, 98,95 ], True, clBlue, 2, clWhite );
TIEPolylineLayer( ImageEnView1.CurrentLayer ).AutoCurving := 60;
ImageEnView1.Update();

// Disable auto-curving
TIEPolylineLayer( ImageEnView1.CurrentLayer ).AutoCurving := 0;
ImageEnView1.Update();

---
