TImageEnView.ZoneCursorSize

Declaration

property ZoneCursorSize: Integer;

Description

Specify the size of the square or circular zone cursor.

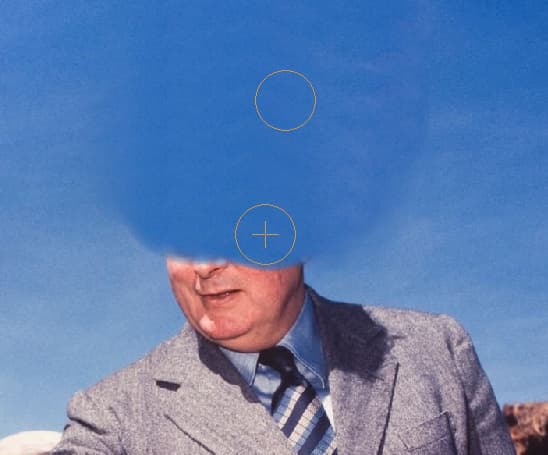

Zone Cursor Brush while Cloning:

Note:
◼The actual display size will be affected by Zoom. I.e. at 50% zoom a Zone cursor of 50 pixels will display as 25 pixels
◼The circle/rectangle will not be drawn unless ZoneCursorSize > 5
◼To specify a zone cursor of a width different from its height, set ZoneCursorSize to Width * 10000 + Height
◼If the cursor flickers excessively, you should set ImageEnView1.DoubleBuffered := True;

Default: 50

Example

// Use a large circular cursor
ImageEnView1.ZoneCursor := iecsCircle;
ImageEnView1.ZoneCursorSize := 100;
ImageEnView1.Update();

// Use a rectangular cursor of 100 x 50 pixels
ImageEnView1.ZoneCursor := iecsRectangle;
ImageEnView1.ZoneCursorSize := 100 * 10000 + 50;
ImageEnView1.Update();
