TPdfObject.Rotation

Declaration

property Rotation: Double;

Description

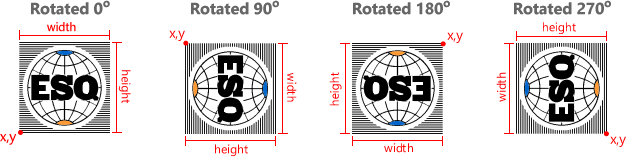

Specify the rotation of an object (in degrees clockwise).

Rotation occurs around the point x,y (the bottom-left of the image when unrotated).



Note:
◼Rotation center is the bottom left of the object
◼The object matrix is used to calculate the rotation
◼TransformEx is used to perform the rotation
◼Rotation cannot be set for path objects

Read/write

Example

// Rotate object 90 deg. clockwise
obj := ImageEnView1.PdfViewer.Objects[idx];
obj.Rotation := obj.Rotation + 90;

See Also

◼TransformEx

---
