| T O P I C R E V I E W |
| spetric |
Posted - Jan 19 2016 : 15:25:19
Hi,
This is my first attempt to build 64-bit app. with imageen.
However, as 64-bit compiler in XE5 is CLANG-type compiler it requires ELF libraries with extension A, and I can not find PKIECTRL19.A in DelphiXE5_64 folder.
Please advise.
TIA,
Siniša |
| 9 L A T E S T R E P L I E S (Newest First) |
| spetric |
Posted - Feb 18 2016 : 03:29:00
Yes, a method sometimes gives very pleasant result, but in general, system requires lot of manual tweaking. The next step is to automatically chose target/source seeding points depending on surrounding background and get rid off all those parameters.
Regarding missing libraries, now everything is fine and I have successfully "connected" Intel's IPP surface with TIEBitmap, both in 32 and 64 bit test app.
So, anyone who wants to exploit Intel's IPP possibilities (freely available through community license) together with Ien, please let me know. IPP API headers can be converted to Delphi...the same way it were converted in old IPL library...hopefully.
I have also tested Nvidia NPP library, it compiles and links, but stays silent. Too much hacking is required to make it work with bcc, so I gave up. With IPP, making it work with bcc was "straight forward" procedure: coff2omf for 32-bit libraries and mkexp for 64-bit libraries.
|
| xequte |
Posted - Feb 17 2016 : 19:24:54
Impressive!
Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
|
| spetric |
Posted - Feb 04 2016 : 17:12:59
Thanks Nigel.
Regarding image completion/inpainting, project is almost finished. I need to get rid of some minor bugs, write some kind of read-me file and I'll post it with full source code (probably next week).
If I grab some time, I'll add a possibility of manual source point retargeting (preferred source domain), but I'm not sure.
Here is another tricky example and it worked quite well.
Original image:
Inpainted:
 |
| xequte |
Posted - Jan 28 2016 : 18:30:22
Hi
Nice work, Sinisa. I'm interested to see how your project progresses.
Next week's release will include all the missing files. Please email me after it is out.
Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
|
| spetric |
Posted - Jan 26 2016 : 16:09:01
Hi Nigel,
I have tried IEVison inpainting (demo) and it looks like "Navier-Stokes inpainting" algorithm which is also a part of IPP library. The algorithm is very good for healing, i.e. removing damaged parts of image or removing text from image, etc.., but it's not suitable for removing big parts of an image.
Currently, the state of the art methods are PatchMatch algorithm (used by Adobe) and "Statistics of Patch Offsets for Image Completion" (Microsoft Research Asia).
There are source codes on GitHub for both algorithms and I have partially implemented the first one, but then came to idea to make a "personal" approach to this topic. Lot of work ahead...
There are images that are very easy to fill/inpaint (removing people from the beach, objects on the grass and similar "highly-textured" backgrounds), but these situations are very nasty for content-filling:

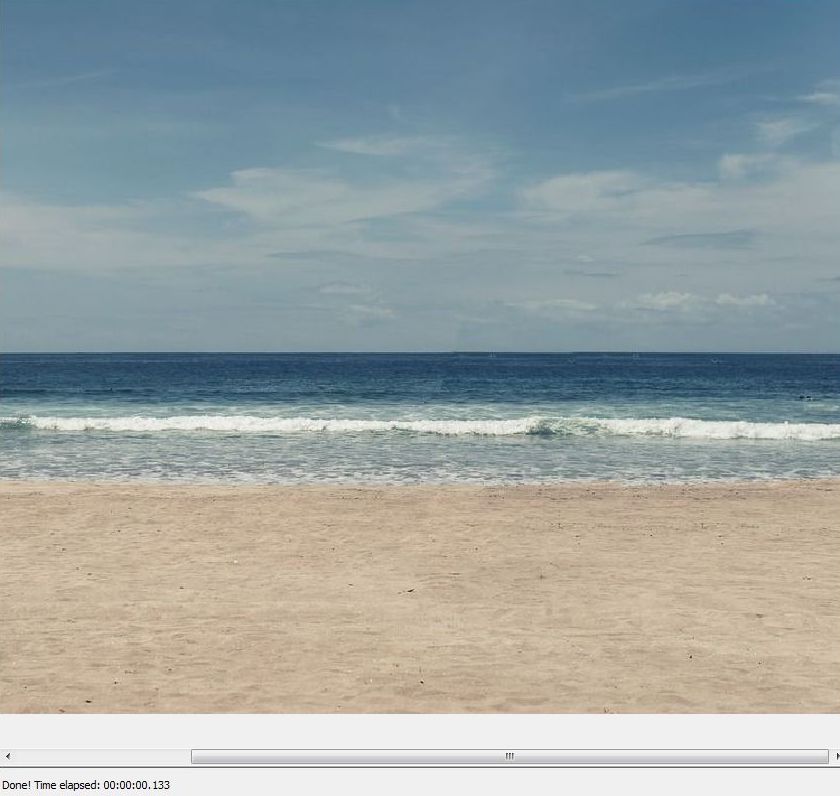

and this is the result, without final phase (smoothing artifacts using strength map). You may notice some isolated pixels:
However, currently my first concern is to get 64-bit ImageEn working.
|
| xequte |
Posted - Jan 25 2016 : 18:54:26
Hi Sinisa
Your inpainting looks cool. I will be interested to compare the results with the Inpainting method in IEVision.
Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
|
| spetric |
Posted - Jan 23 2016 : 15:37:29
I forgot,
ImageEn version is 5.2.0. and if someone has 64-bit C++ libraries, please let me know.
I need it to "connect" Intel's IPP library (community licence) with ImageEn.
IPP 32-bit version works fine (libraries converted to OMF), but I wanna try with 64-bit ImageEn. I've converted 64-bit IPP libraries to ELF format and everything works fine, except that I can not perform image sharing between IPP and ImageEn.
TIA,
Siniša
BTW: I'm also working on a new algorithm for image inpainting (image completion/content aware filling) and
it works really fast. I'm not yet finished (strength map not implemented), but soon as I complete the work, I'll publish the paper on the algorithm and post the demo with full source code.
Here is very rough example, without strength map (similar to grow-cut algorithm) and without some other stuff I need to implement:

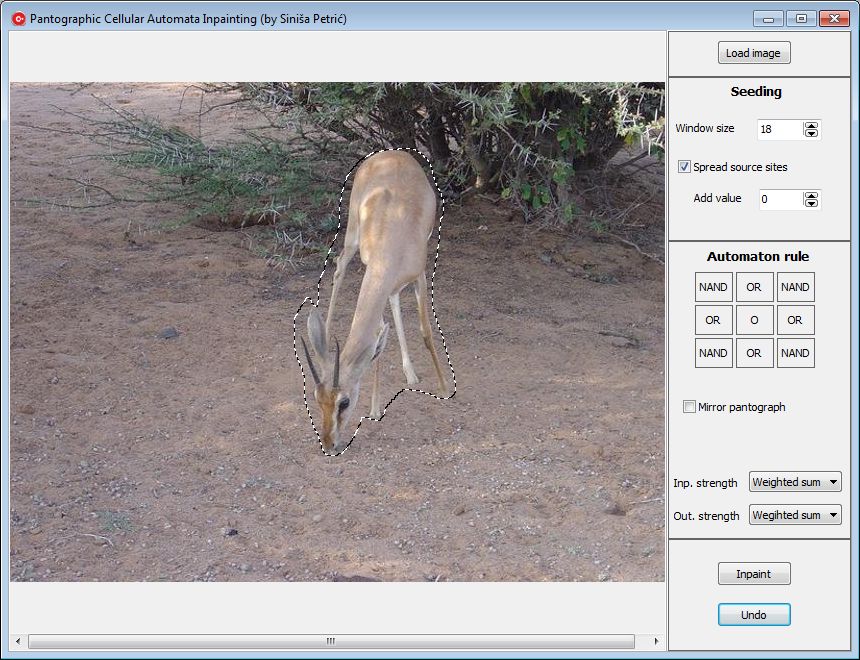

Original image:

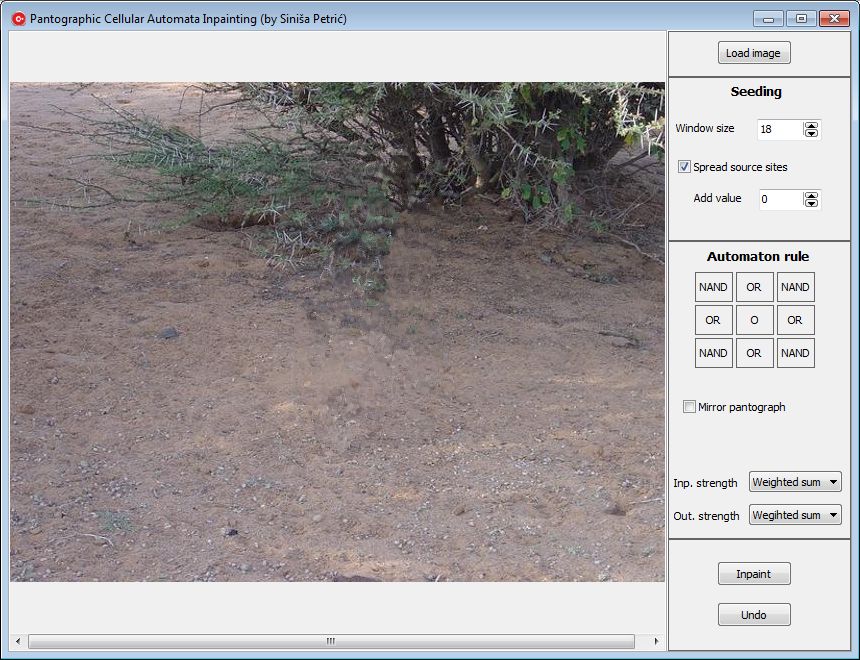

Inpainted (I did not measure the time, but it's less then a second):
 |
| spetric |
Posted - Jan 20 2016 : 02:54:29
Hi Nigel,

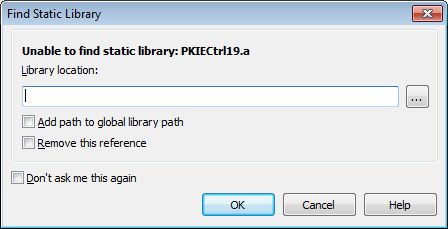

Here is an error:
and in output, ilink64 reports error: Unable to open file 'PKIECTRL19.A'
Edit: There is also a bunch of "*.o" files missing (IEOPENSAVEDLG.O).
The problem is that I don't have full IDE installation (only C++ XE5) and I can not compile dpk projects.
|
| xequte |
Posted - Jan 19 2016 : 18:33:30
Hi Siniša
What is the specific error message that you get?
Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
|
|
|
