 Canceling Acquire Dialog Adds Black Image
 New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

Elemental

USA
56 Posts

Posted - Mar 26 2014 :  10:18:25  Show Profile  Reply

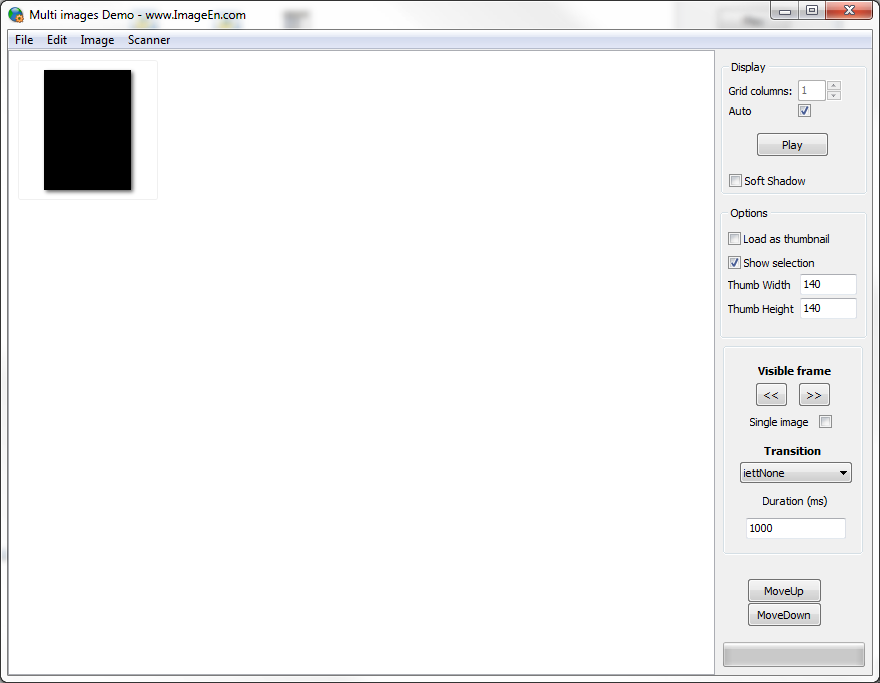

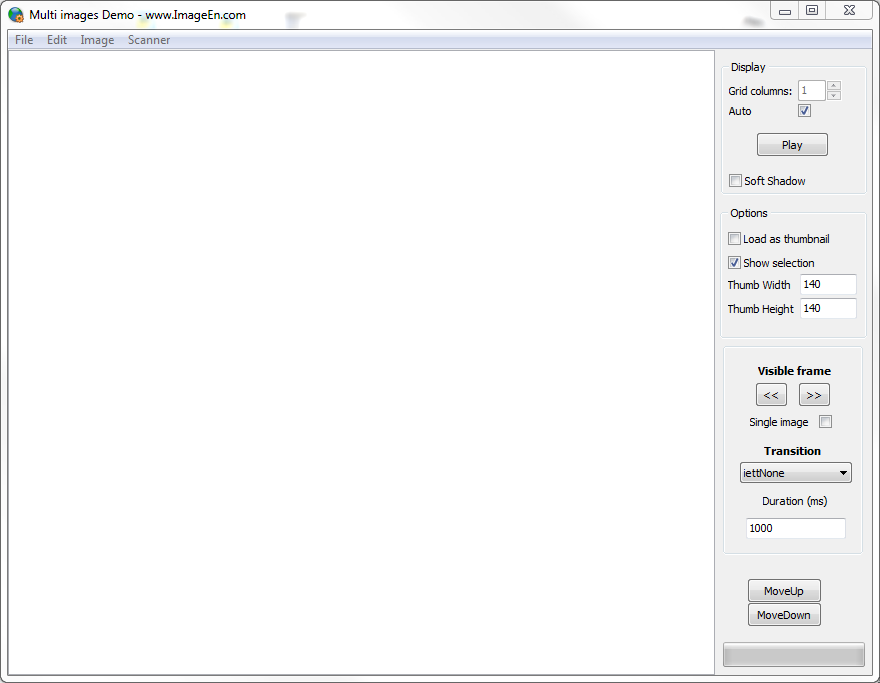

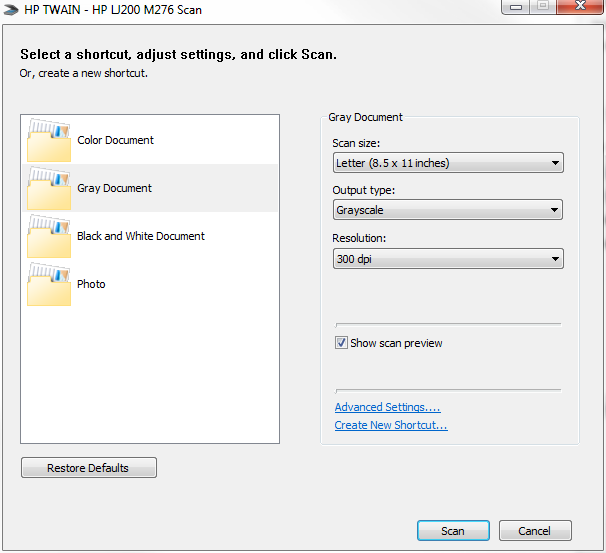

I have a project which suffers from the same problem that one of the demos does. The demo project is Multi\Multi.dproj. If you go to Scanner > Acquire Pages, it brings up a dialog, which is great. But if I click Cancel on that dialog, the TImageEnMView gets a new, black box page.

To attempt to solve the problem, I've tried adding a TImageEnMIO component to the form and hooking it to the TImageEnMView. I handle the OnAcquireBitmap method, testing for different kinds of situations, like ImageEnMIO1.Aborting, not ABitmap.IsAllBlack, and not ABitmap.IsEmpty, but I still get that little box.

However, this doesn't seem to occur when connecting to a scanner that doesn't have a Cancel button in its acquire dialog (though it does have a Close button like most Windows windows).

"Roj"






w2m

USA
1990 Posts

Posted - Mar 26 2014 :  13:18:20  Show Profile  Reply
This was tested with an HP8600:

private
{ Private declarations }
  AAborting: Boolean;

procedure TForm1.FormCreate(Sender: TObject);
begin
  AAborting := False;
  ImageEnMView1.SetModernStyling;
end;

procedure TForm1.Acquirepages1Click(Sender: TObject);
{ Menu, scanner | acquire pages }
begin
  ImageEnMView1.Deselect;
  if ImageEnMView1.MIO.AcquireParams.SelectedSourceApi = ieaTwain then
  begin
    ImageEnMView1.MIO.TwainParams.FeederEnabled := true;
    ImageEnMView1.MIO.TwainParams.AutoFeed := true;
    ImageEnMView1.MIO.TwainParams.DuplexEnabled := False;
  end;
  if not ImageEnMView1.MIO.Acquire then
    AAborting := True
  else
    AAborting := False;
end;

procedure TForm1.ImageEnMView1AfterEvent(Sender: TObject; Event: TIEAfterEvent);
{ Occurs immediately after ImageEn has processed an event. }
begin
  if Event = ieaePaint then
    if AAborting then
      { Remove blank pages }
      ImageEnMView1.RemoveBlankPages(1, True, True);
end;

I did not get a blank page when cancelling a WIA dialog but I did get a blank black page when canceling a TWain dialog. It seems like if ImageEnMView1.MIO.Acquire = False then ImageEnMView should not create a blank page at all. Anyway... this seems to work.

William Miller
Adirondack Software & Graphics
Email: w2m@frontiernet.net
EBook: http://www.imageen.com/ebook/
Apprehend: http://www.frontiernet.net/~w2m/index.html
Custom ImageEn Development
Go to Top of Page

Elemental

USA
56 Posts

Posted - Mar 26 2014 :  13:36:06  Show Profile  Reply
I wasn't able to get that code to work for me; it would delete all the images that I already had in the view. Here is the scan code I needed, without handling any events:


  ImageEnMIO1.AcquireParams.VisibleDialog := True;
  if ImageEnMIO1.SetAcquireSource( ieaTwain, Default_Device ) then
    if not ImageEnMIO1.Acquire then
      ImageEnMView1.RemoveBlankPages( 0.0001, False, False );


The black box appears briefly, then disappears. By supplying a very small tolerance, I can rest pretty assured that it won't remove other valid pages from my component. By supplying False for the second parameter, it only deleted one image, no more. By supplying False as the third parameter, the empty-page-check begins at the end instead of the beginning, saving time, and ensuring the right image is removed.

"Roj"
Go to Top of Page

w2m

USA
1990 Posts

Posted - Mar 26 2014 :  13:59:19  Show Profile  Reply
If you change mine to
ImageEnMView1.RemoveBlankPages(0.0001, False, False);
then you will not see the black page at all.

William Miller
Adirondack Software & Graphics
Email: w2m@frontiernet.net
EBook: http://www.imageen.com/ebook/
Apprehend: http://www.frontiernet.net/~w2m/index.html
Custom ImageEn Development
Go to Top of Page

xequte

38608 Posts

Posted - Mar 27 2014 :  14:12:44  Show Profile  Reply
Hi

In my testing, I could not reproduce this via Twain or WIA. It might be a weirdness with the driver for HP devices, but I lack one for testing.

Will investigate further.



Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
Go to Top of Page
