 Extended cursor		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

graphman

259 Posts
Posted - May 14 2014 :  09:32:54  Show Profile  Reply

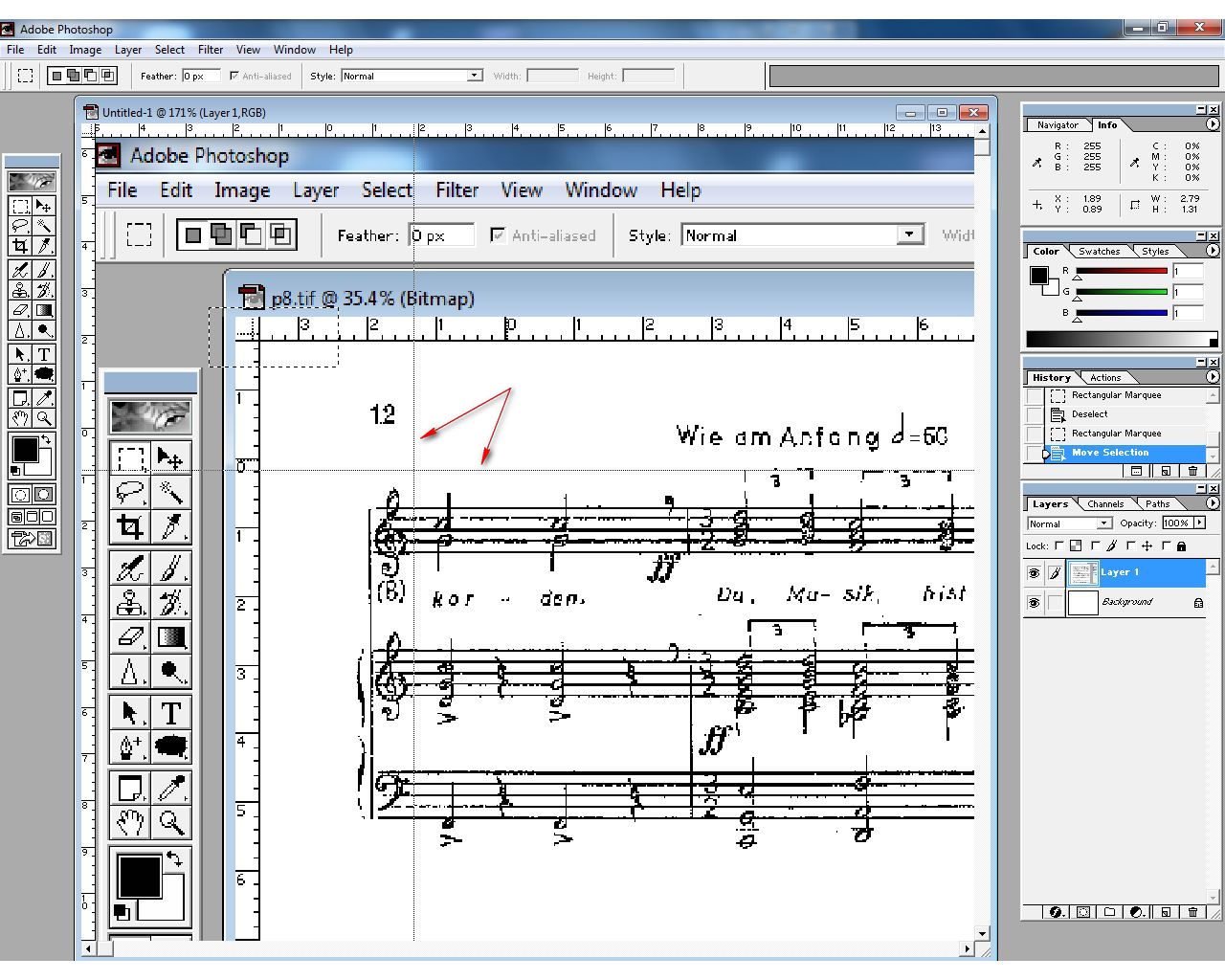

Is there a way to show cursor like in the attached image?

xequte

38514 Posts
Posted - May 14 2014 :  13:44:24  Show Profile  Reply
Hi

Yes, you could do it quite easily by overriding the TImageEnView draw event:

http://www.imageen.com/help/TIEOnDrawCanvas.html

Get the cursor position...
pt := ImageEnView1.ScreenToClient( Mouse.CursorPos );

And then fire off two canvas.LineTo calls with the relevant pen.style

Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
Go to Top of Page

graphman

259 Posts
Posted - May 15 2014 :  01:10:34  Show Profile  Reply
Thanks
Go to Top of Page

graphman

259 Posts
Posted - May 15 2014 :  12:49:18  Show Profile  Reply
But I see these lines at starting of program only.
Nothing happen at mouse moving.



void __fastcall TForm9::ImageEnView1DrawCanvas(TObject *Sender, TCanvas *ACanvas,
TRect &ARect)
{
TPoint pt = ImageEnView1->ScreenToClient(Mouse->CursorPos);

ACanvas->Pen->Style = psDot;

ACanvas->MoveTo(0, pt.y);
ACanvas->LineTo(ImageEnView1->Width, pt.y);

ACanvas->MoveTo(pt.x, 0);
ACanvas->LineTo(pt.x, ImageEnView1->Height);
}
//---------------------------------------------------------------------------
Go to Top of Page

spetric

Croatia
308 Posts
Posted - May 15 2014 :  15:17:35  Show Profile  Reply
I think it's more convenient to use two perpendicular iekLine objects
and move them in OnMouseMove event.
Go to Top of Page

xequte

38514 Posts
Posted - May 16 2014 :  01:42:10  Show Profile  Reply
You would need to invalidate the ImageEnView to repaint it (or at least repaint the portion that previously had a a line drawn).

But spetric may be right, it might be better to use external controls to handle it so that you do not get excessive redraw.


Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
Go to Top of Page

graphman

259 Posts
Posted - May 16 2014 :  02:19:53  Show Profile  Reply
OK
