 Brother ADS-2400N LAN X- u.YResolution.RangeMax=0		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

Ralf

120 Posts
Posted - Mar 03 2017 :  03:50:47  Show Profile  Reply
Hi,
i want to offer our customer a array of possible DPI-Sizes for Scanning. To see witch size is possible i use TWainParams.XResolution.RangeMax. This work good with our Fujitsu. With the Brother the value=0.

Here you can see the Twain and Driver version:

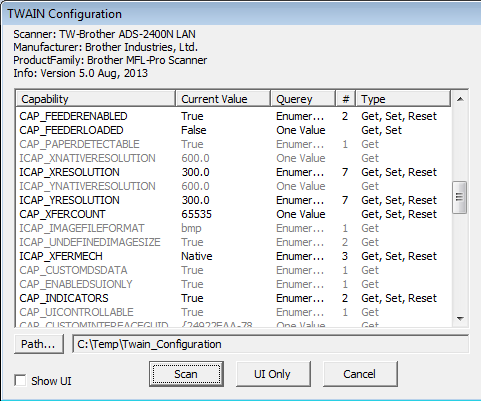

Here you can see the Configuration:



as you see the ICAP_XNATIVERESOLUTION is 600.

For getting this information i used a software from twain.org. Called twainapp.win64.installer.msi

The Question is why the XResolution.RangeMax is 0 and not 600.

Thanks

Ralf

Ralf

120 Posts
Posted - Mar 27 2017 :  02:23:37  Show Profile  Reply
Hi Nigel,

haven't you any answer for this problem?

Best regards

Ralf
Go to Top of Page

xequte

38615 Posts
Posted - Mar 27 2017 :  05:13:10  Show Profile  Reply
Hi Ralf

I expect the driver is not adequately returning the correct information.



Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
Go to Top of Page

Ralf

120 Posts
Posted - Mar 27 2017 :  05:45:31  Show Profile  Reply
Hi Nigel,

yes, that can be.

I now do a couple of different tests to get information withch DPI-Sizes are Supported.
1. TwainParams.XResolution.count>0
2. TWainParams.XResolution.RangeMax>0
3. if 1 and 2 have no success i use the actual XResolution
Thats not very nice.
Best Regards

Ralf
