 Grid Sized to layer		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

Alan

Australia
10 Posts
Posted - Feb 27 2022 :  01:39:57  Show Profile  Reply
Hi
Is it possible to for the grid to be sized to the assigned layer?

ImageEnView1.DisplayGridLyr:=(ImageEnView1.CurrentLayer.LayerIndex);

Still fills the client area not the Layer.

Do I need to draw my own grid?

Thanks

Alan

PS sorry for the basic question just getting started with ImageEn

xequte

38608 Posts
Posted - Feb 27 2022 :  15:45:36  Show Profile  Reply
Hi Alan

DisplayGridLyr only supports iedgPixelGrid. What are you looking to do?

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Alan

Australia
10 Posts
Posted - Feb 27 2022 :  22:50:09  Show Profile  Reply
Hi Nigel

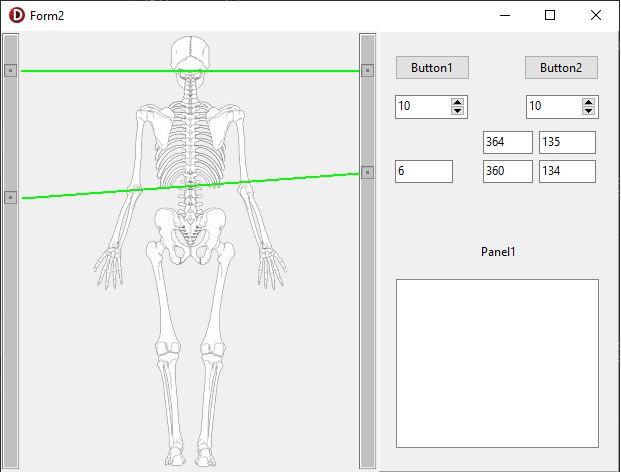

Please see the attached image, I have a gutter either-side of my image I'd like to add a grid over the image but not covering the gutter.

As there is already a grid option built in I wondered if it could be used?

Thanks

Alan
Go to Top of Page

xequte

38608 Posts
Posted - Feb 28 2022 :  00:03:43  Show Profile  Reply
Hi Alan

How would you want the grid positioned?

You might be better to draw a custom line using an event such as OnDrawCanvas:

https://www.imageen.com/help/TImageEnView.OnDrawCanvas.html

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Alan

Australia
10 Posts
Posted - Feb 28 2022 :  01:39:16  Show Profile  Reply
Thanks for responding.

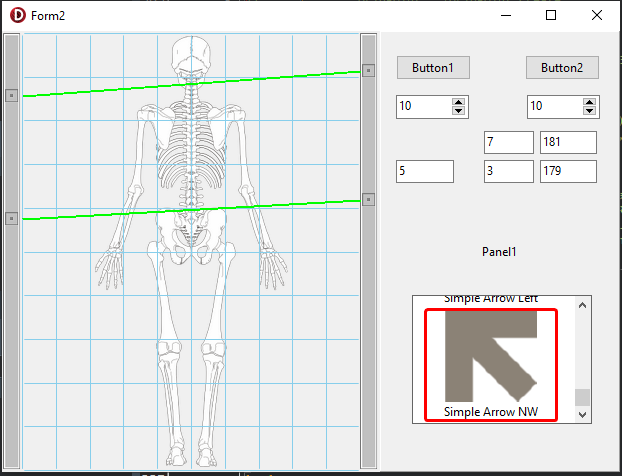

I have implemented my own grid drawing :)

Not sure if it was the best way but I used line layers and then just merged them with the image layer.

Thanks

Alan

PS
I know this has been asked before: but is there a way to add my own shape to the shapes list.
Go to Top of Page

xequte

38608 Posts
Posted - Feb 28 2022 :  20:45:28  Show Profile  Reply
Hi Alan

Line Layers will work, but I think canvas drawing would be quicker and simpler.

For custom shapes you should use a TIEPolylineLayer.

Alternatively, if you have new shapes of general appeal, you can forward them to us for inclusion in the library.



Nigel
Xequte Software
www.imageen.com
Go to Top of Page
