 ImageEnMView: AcquireParams issue		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

Flashcqxg

96 Posts
Posted - Oct 24 2022 :  22:13:27  Show Profile  Reply

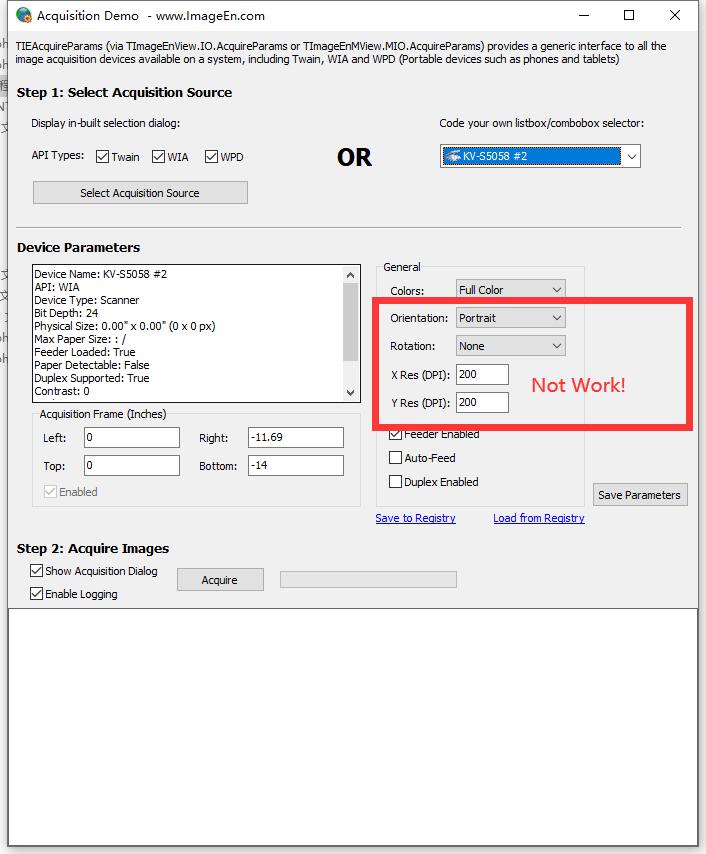

the scanner is panasonic KV-S5058

xequte

38610 Posts
Posted - Oct 24 2022 :  22:26:08  Show Profile  Reply
Hi

You are using the WIA API here, which is not featured as Twain. Does the Twain driver for this device support it?



Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Flashcqxg

96 Posts
Posted - Oct 24 2022 :  22:33:16  Show Profile  Reply

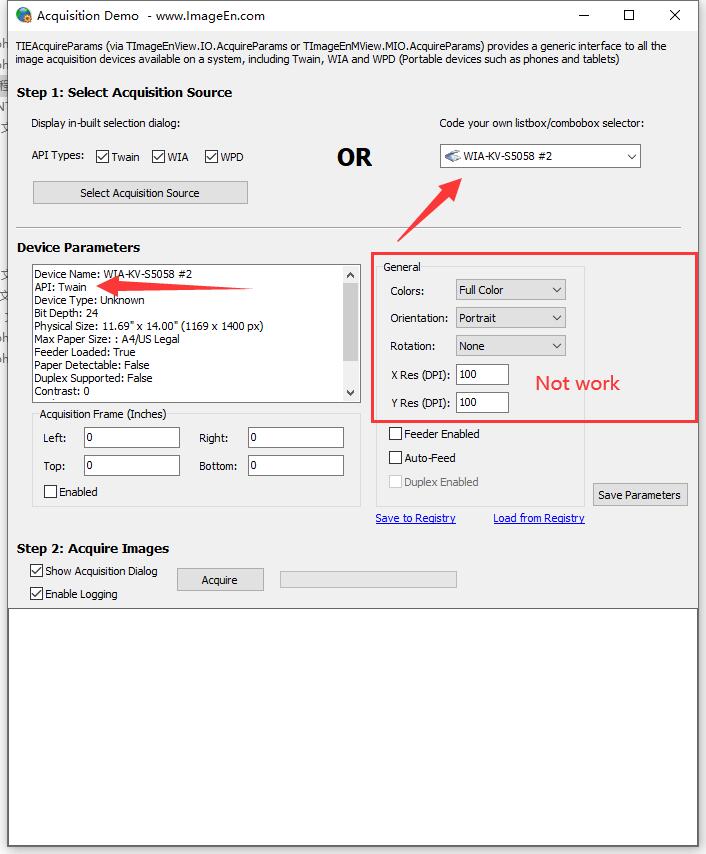

not work!!!
Go to Top of Page

Flashcqxg

96 Posts
Posted - Oct 24 2022 :  22:37:03  Show Profile  Reply

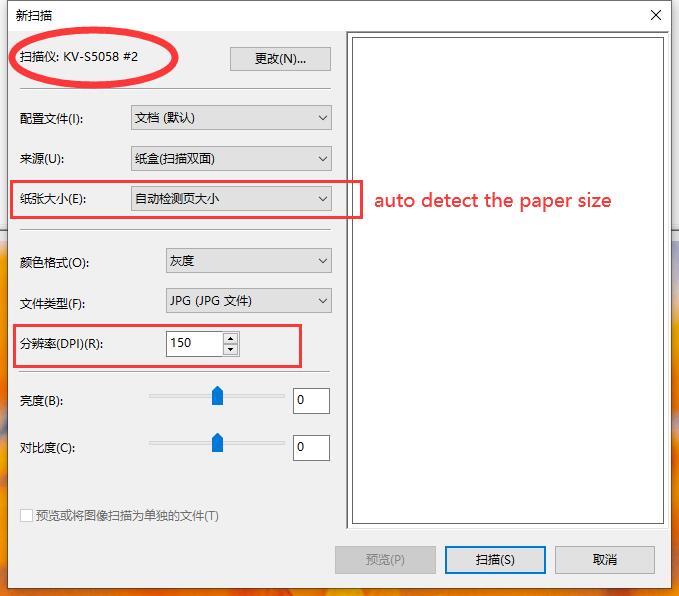

When i use the windows's scan program,select the KV-S5058 #2(WIA),it can use the 150DPI,and auto detect the paper size.
but the ImageEnMView can not. how can i use ImageEnMView to detect the paper size and set the 150dpi.
Thanks.
Go to Top of Page

Flashcqxg

96 Posts
Posted - Oct 24 2022 :  22:39:59  Show Profile  Reply
The Windows's scan program work well.
Go to Top of Page

xequte

38610 Posts
Posted - Oct 24 2022 :  22:56:38  Show Profile  Reply
Hi

Those values are returned from the WIA driver using the WIA_IPS_XRES and WIA_IPS_YRES properties. I'm not sure where the Windows scanner is gettings its values.

Have you tried the WIA Scanner demo to see what info is returned for that device?

\Demos\ImageAcquisition\WIAScanner\WIAScanner.dpr


Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Flashcqxg

96 Posts

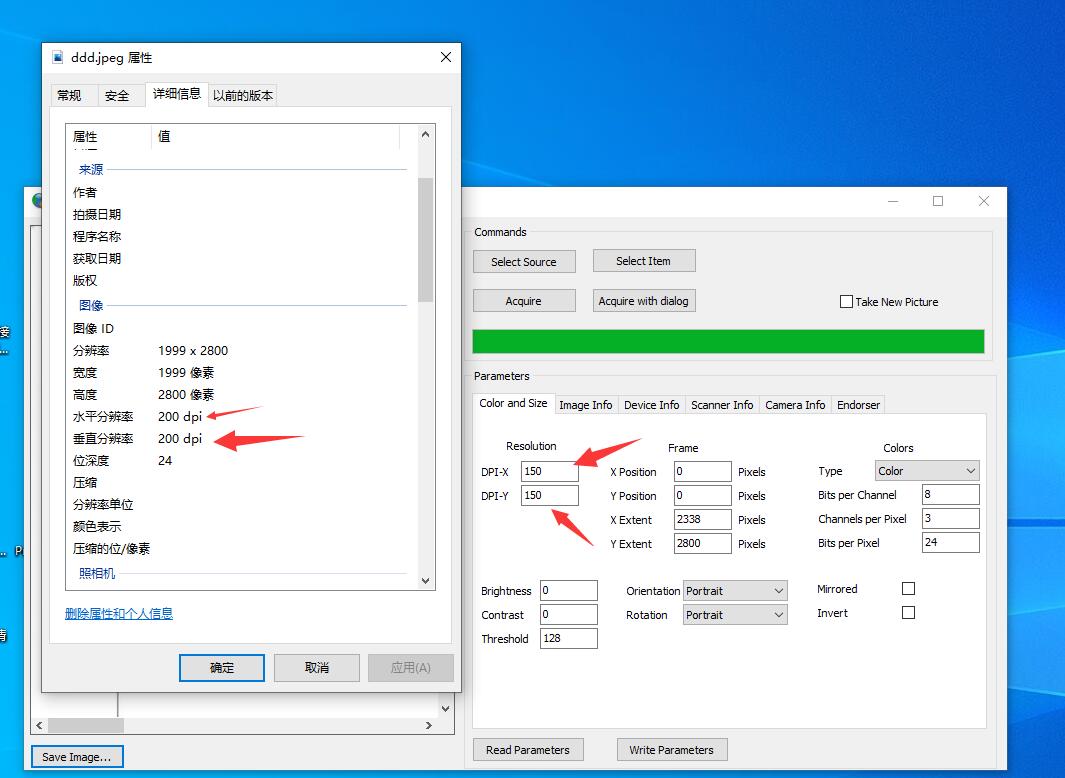

Posted - Oct 24 2022 :  23:01:20  Show Profile  Reply


Go to Top of Page

xequte

38610 Posts
Posted - Oct 24 2022 :  23:32:51  Show Profile  Reply
Hi

Is this just clicking the "Select Source" button?
Or did you also click "Select Item"?

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Flashcqxg

96 Posts
Posted - Oct 25 2022 :  01:05:56  Show Profile  Reply
Hello:
I test the "Select Item",but the result same.
Go to Top of Page

xequte

38610 Posts
Posted - Oct 26 2022 :  14:42:30  Show Profile  Reply
Hi

We've tested on our scanners as follows:
- acquire from scanner using a WIA driver: Works correctly
- acquire from scanner using a WIA driver, setting DPI at 150 or 200: Works correctly with the resulting image size correct

Is there any further information you can give us.


Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Flashcqxg

96 Posts
Posted - Oct 27 2022 :  03:06:42  Show Profile  Reply
Hi:
Thank you.
I consulted Panasonic today and they told me to upgrade the firmware. After I upgraded the firmware, it worked normally.
