 How to invoke the context menu of a right-clicked Layer?
 New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

PeterPanino

933 Posts

Posted - May 02 2023 :  14:49:25  Show Profile  Reply
I need to show the Layer Properties dialog for a selected Layer, either by:

1. Invoking the Layer's context menu by right-clicking the Layer and selecting the Layer Properties Dialog menu item, or:
2. Programmatically invoking the Layer's Property dialog, e.g., by double-clicking the Layer while holding the CTRL key.

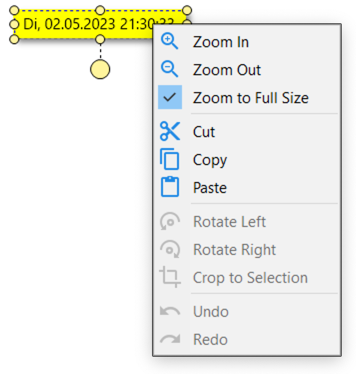

Unfortunately, when I right-click a Layer, no Layer context menu is shown, but rather a context menu with items that refer to the whole image (not to the Layer) is shown:



I suppose it is a fundamental and obvious UI feature to show the context menu of the right-clicked object and not the context menu of a completely different object. So how can I show the context menu of the right-clicked Layer?

xequte

38611 Posts

Posted - May 02 2023 :  16:24:45  Show Profile  Reply
Hi Peter

What is the value for ImageEnView1.PopupMenus?

http://www.imageen.com/help/TImageEnView.PopupMenus.html

It should be:

// Display popup with buttons relevant to editing layers. If right-clicking a layer, it changes to methods for the current layer
ImageEnView1.PopupMenus := [ ievLayerEditing, ievLayerSelection ];


Nigel
Xequte Software
www.imageen.com
Go to Top of Page

PeterPanino

933 Posts

Posted - May 02 2023 :  17:33:53  Show Profile  Reply
Hi Nigel,

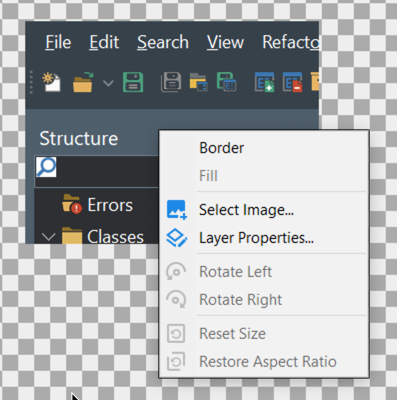

I've tried that already. But this shows the Layer context menu even when I right-click a regular image without any Layer present:

Go to Top of Page

xequte

38611 Posts

Posted - May 02 2023 :  20:30:45  Show Profile  Reply
Hi Peter

The background image is also a layer (Layer 0). If you need more configuration, use the event:

https://www.imageen.com/help/TIEGlobalSettings.OnAddPopupMenuItem.html

Or build your own context menu (e.g. using the ImageEn action classes).



Nigel
Xequte Software
www.imageen.com
Go to Top of Page

PeterPanino

933 Posts

Posted - May 03 2023 :  02:18:57  Show Profile  Reply
"If you need more configuration"

IMO, showing the correct context menu for the right-clicked object should be automatically controlled by ImageEn: Nobody would want to show the Layer context menu when right-clicking Layer 0 (the background image).
Go to Top of Page

PeterPanino

933 Posts

Posted - May 03 2023 :  03:22:11  Show Profile  Reply
I have now found the most simple/best solution that works perfectly:

procedure TformMain.ImageEnView1MouseDown(Sender: TObject; Button: TMouseButton; Shift: TShiftState; X, Y: Integer);
begin
  var ThisLayer := ImageEnView1.FindLayerAt(X, Y);

  if Button = mbLeft then
  begin
    // ...
  end
  else if Button = mbRight then
  begin
    if ThisLayer > 0 then
      ImageEnView1.PopupMenus := [ievLayerEditing, ievLayerSelection]
    else if ThisLayer = 0 then
      ImageEnView1.PopupMenus := [ievViewing, ievEditing, ievSelection];
  end;
end;


Now the correct context menu is shown in any case!
Go to Top of Page

PeterPanino

933 Posts

Posted - May 03 2023 :  05:40:25  Show Profile  Reply
This adds more flexibility by showing the CONTEXT TOOLBAR instead of the context menu when holding down the CTRL key while right-clicking a Layer:

procedure TformMain.ImageEnView1MouseDown(Sender: TObject; Button: TMouseButton; Shift: TShiftState; X, Y: Integer);
begin
  var ThisLayer := ImageEnView1.FindLayerAt(X, Y);

  if Button = mbLeft then
  begin
    ImageEnView1.AutoToolbars := [];
    // ...
  end
  else if Button = mbRight then
  begin
    if ThisLayer > 0 then // right-clicked a floating Layer (not the Background)
    begin
      // only CTRL modifier key pressed:
      if (GetKeyState(VK_CONTROL) < 0) and (GetKeyState(VK_SHIFT) >= 0) and (GetKeyState(VK_MENU) >= 0) then
      begin
        ImageEnView1.PopupMenus := [];
        ImageEnView1.AutoToolbars := [ievLayerEditing, ievLayerSelection];
      end
      // NO modifier key pressed:
      else if (GetKeyState(VK_CONTROL) >= 0) and (GetKeyState(VK_SHIFT) >= 0) and (GetKeyState(VK_MENU) >= 0) then
      begin
        ImageEnView1.PopupMenus := [ievLayerEditing, ievLayerSelection];
        ImageEnView1.AutoToolbars := [];
      end
    end
    else if ThisLayer = 0 then // right-clicked the Background Image
    begin
      ImageEnView1.PopupMenus := [ievViewing, ievEditing, ievSelection];
      ImageEnView1.AutoToolbars := [];
    end;
  end;
end;


I love the flexibility in ImageEn.

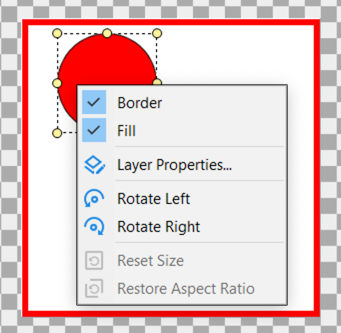

Layer context menu with no modifier keys pressed:

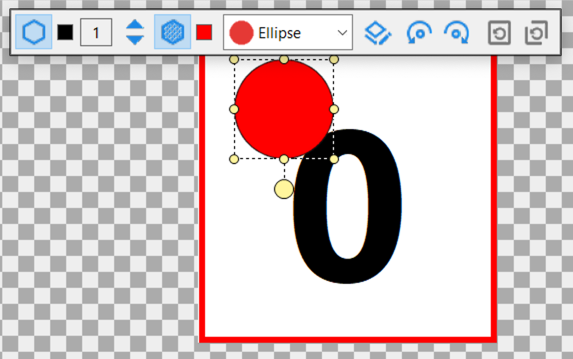

Layer context toolbar with CTRL key pressed:

Go to Top of Page

PeterPanino

933 Posts

Posted - May 04 2023 :  13:43:31  Show Profile  Reply
Hi Nigel,

I want to add an item to the popup context menu when right-clicking a Layer: Merge to Background.

So I followed your link above and applied the example on the page "TIEGlobalSettings.OnAddPopupMenuItem":

procedure TformMain.IEGlobalSettings1AddPopupMenuItem(Sender: TObject; ToolbarID, ButtonID: Integer; var Include: Boolean);
begin
  if ToolbarID = Layer_Selection_PopupMenu_ID  then
  begin
    if ButtonID = IELayersMergeToBackground_Button_ID then
      Include := True;
  end;
end;


Unfortunately, it does not work. So how can I add the desired menu item?

In other words: What is the TIEGlobalSettings.OnAddPopupMenuItem event handler good for if it does not work?
Go to Top of Page

PeterPanino

933 Posts

Posted - May 04 2023 :  17:00:41  Show Profile  Reply
Meanwhile, I use this code to configure the LayerSelection context menu:

procedure TformMain.FormCreate(Sender: TObject);
begin
  // layer-Popupmenu:
  IEGlobalSettings().LayerSelectionPopupMenu := [
    ivbLayersPropsDlg,   // TImageEnViewLayersShowPropertiesDialog
    ivbLayersGroup,      // TImageEnViewLayersGroup, TImageEnViewLayersUngroup
    ivbLayersOther,      // IELayerFlipHorz_Button_ID, IELayerFlipVert_Button_ID
    ivbLayersStyle,      // TIELayerFill, TIELayerBorder, TIELayerBorderWidth
    ivbLayersSize,       // TIELayerRestoreAspectRatio, TIELayerSizeToFit, TIEImageLayerRestoreSize
    //ivbLayersProps,
    //ivbLayersEdit,
    ivbLayersEditCurrent // TImageEnViewLayersMergeToBackground, TImageEnViewLayersRemoveCurrent,
                         // TImageEnViewLayersCropBackground, TIELayerConvertToImageLayer
  ];

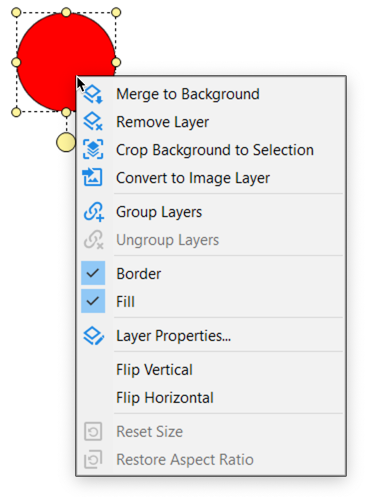

This results in the following Layer context menu:



However, to achieve better fine-tuning, it would be important that the "TIEGlobalSettings.OnAddPopupMenuItem" would work as intended.
Go to Top of Page

xequte

38611 Posts

Posted - May 04 2023 :  22:06:53  Show Profile  Reply
Hi Peter

Please read the documentation:

http://www.imageen.com/help/TIEGlobalSettings.OnAddPopupMenuItem.html

The event occurs once for each item specified by the popup menu property, so you need to add it to the popup list to be offered.

However this is one of the things that is changed in the upcoming 12.0.5. From v12.0.5 all items are output to OnAddPopupMenuItem, OnAddToolbarButton, etc, and you can include/exclude more simply.

You can email me for a beta if you like.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

PeterPanino

933 Posts

Posted - May 05 2023 :  03:39:58  Show Profile  Reply
Hi Nigel,

I have read the documentation:

http://www.imageen.com/help/TIEGlobalSettings.OnAddPopupMenuItem.html

So I'm looking forward to the improvements in v12.0.5. When will it be available?

Thank you again for the fantastic ImagEn and your support!
Go to Top of Page

xequte

38611 Posts

Posted - May 05 2023 :  17:07:29  Show Profile  Reply
Hi Peter

We're hoping to get it out before the end of May, but you can email me for a beta.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page
