 Does the imageen control support line/arrow editing features?
 New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

tianpanhaha

China
15 Posts

Posted - Feb 23 2024 :  00:28:43  Show Profile  Reply

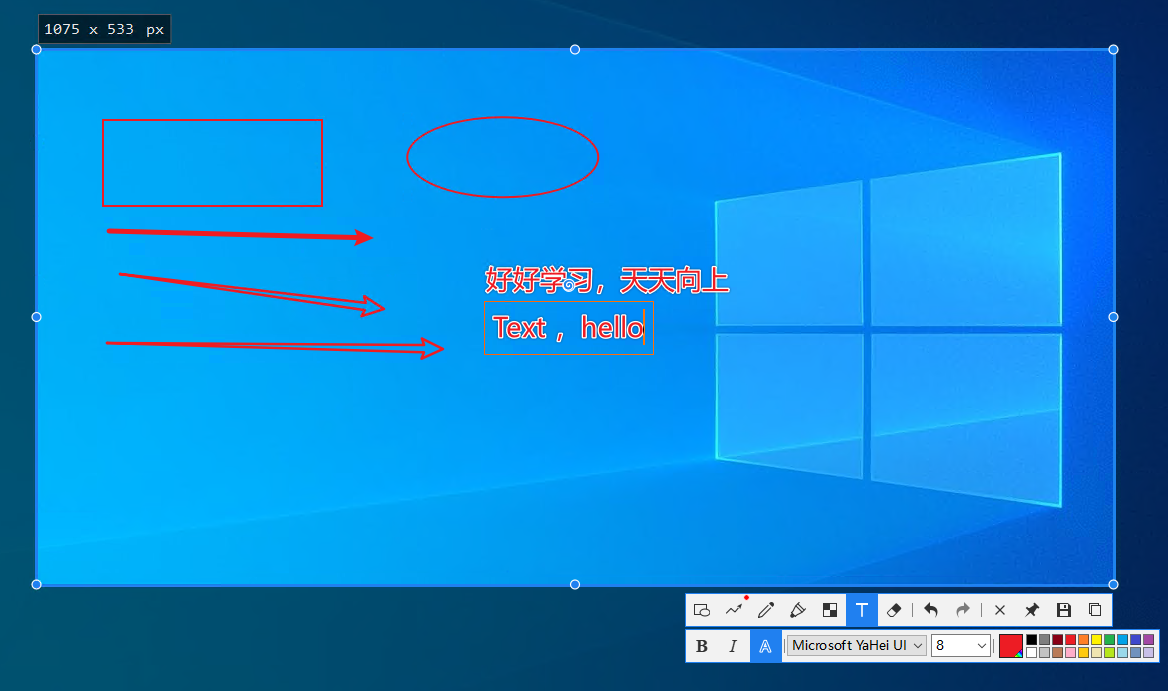

Does the imageen control have image editing features to add text, arrows, grid rectangles, etc. to images.

Really desperately need these features, thank you so much.

1. Insert arrows into the picture and mark the arrow serial numbers 1,2,3. Pull the end of the arrow to rotate 360 degrees.

2. For the inserted image, from the process of pressing the mouse to releasing the mouse, you can freely rotate 360 degrees to adjust the angle and size style of the inserted image.



tianpanhaha

xequte

38592 Posts

Posted - Feb 23 2024 :  03:47:33  Show Profile  Reply
Hi

1. Yes, you can do this with a TIELineLayer. You can specify an arrow for the line end.

See the examples at: http://www.imageen.com/help/TIELineLayer.html


2. You can drag to size and rotate line layers by adding mlEditLayerPoints to MouseInteractLayers:

http://www.imageen.com/help/TImageEnView.MouseInteractLayers.html



Nigel
Xequte Software
www.imageen.com
