Modified PDF shows font in different color

New Topic

Reply to Topic

Author

Topic

yeohray2

Malaysia
106 Posts

Posted - Jun 03 2024 : 06:50:29

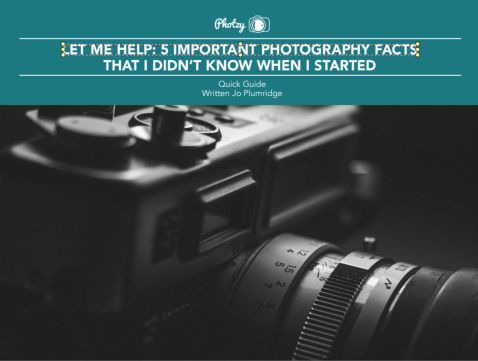

Using the PDFPageObjects demo and iepdf32.dll (125.0.6406.0) and ImageEn 13.2, I loaded a PDF file.

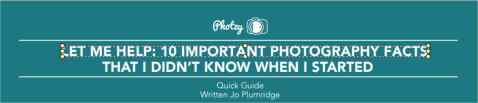

I changed the text.

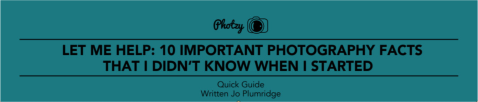

I then applied the changes, and saved the modified PDF. When I open the modified PDF, the font color is in black.

You can download the PDF file here - https://drive.google.com/file/d/1JPhfrAoPqpaTe1ZIcndtX7M1S-XJ7PUs/view?usp=drive_link

Is there some setting I need to apply to preserve the font properties?

Thanks.

Ray Mond

xequte

38610 Posts

Posted - Jun 04 2024 : 00:22:51

Hi Ray

That looks to be a quirk of PDFium. You might want to explicitly set the Text fill color when you update the text:

ImageEnView1.PdfViewer.Objects[ImageEnView1.PdfViewer.SelectedObject].FillColor := color;

Nigel
Xequte Software
www.imageen.com

yeohray2

Malaysia
106 Posts

Posted - Jun 04 2024 : 02:21:19

Hi Nigel,

Noted, thanks.

Ray
