PaulF
United Kingdom
9 Posts |
 Posted - Sep 09 2024 : 05:15:26
|
Hi,

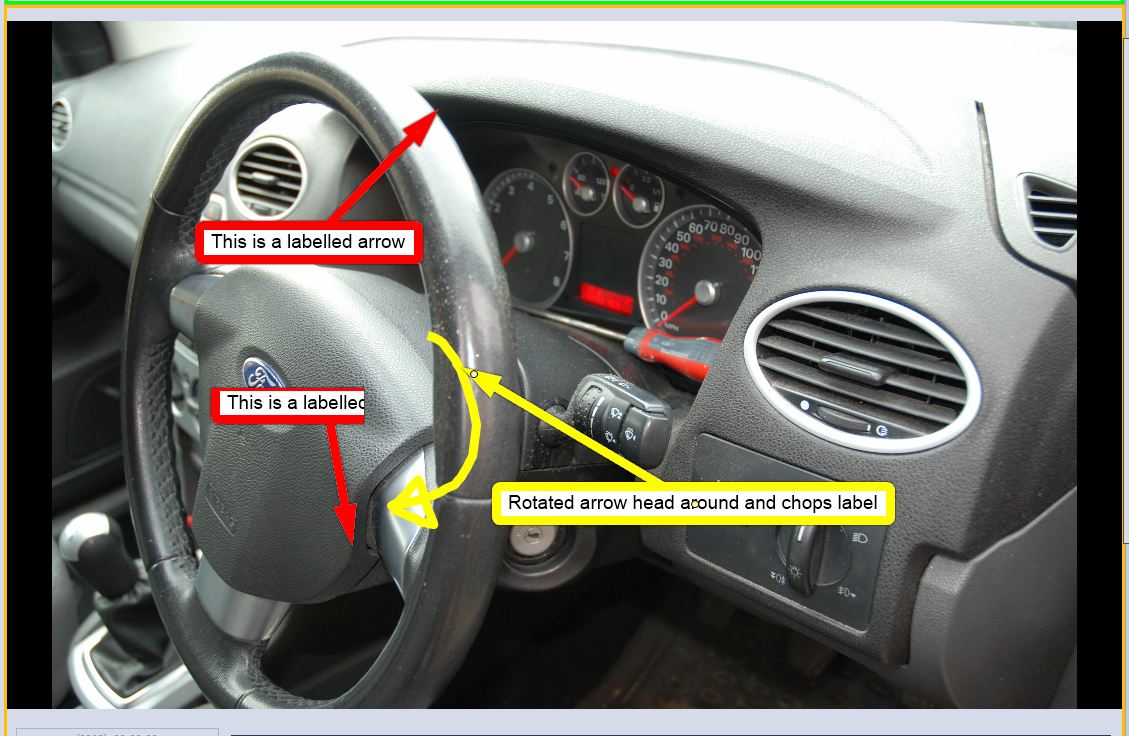

Labelled arrows are used quite a bit in our application. If you draw a labelled arrow, then rotate the arrow head it chops the label, see attached screenshot. I think this issue has occurred before - it was working OK in Version 11.4.0,. I'm using version 13.2.
regards
Paul
 |
|
|
xequte
38683 Posts |
Posted - Sep 09 2024 : 21:20:27
|
Hmm, I'm not able to reproduce that. Can you send me your sample ImageEn layers files and the precise steps to reproduce in a simple demo (or one of our demos)?
Nigel
Xequte Software
www.imageen.com
|
 |
|
|
PaulF
United Kingdom
9 Posts |
Posted - Sep 10 2024 : 02:36:50
|
Hi Nigel,

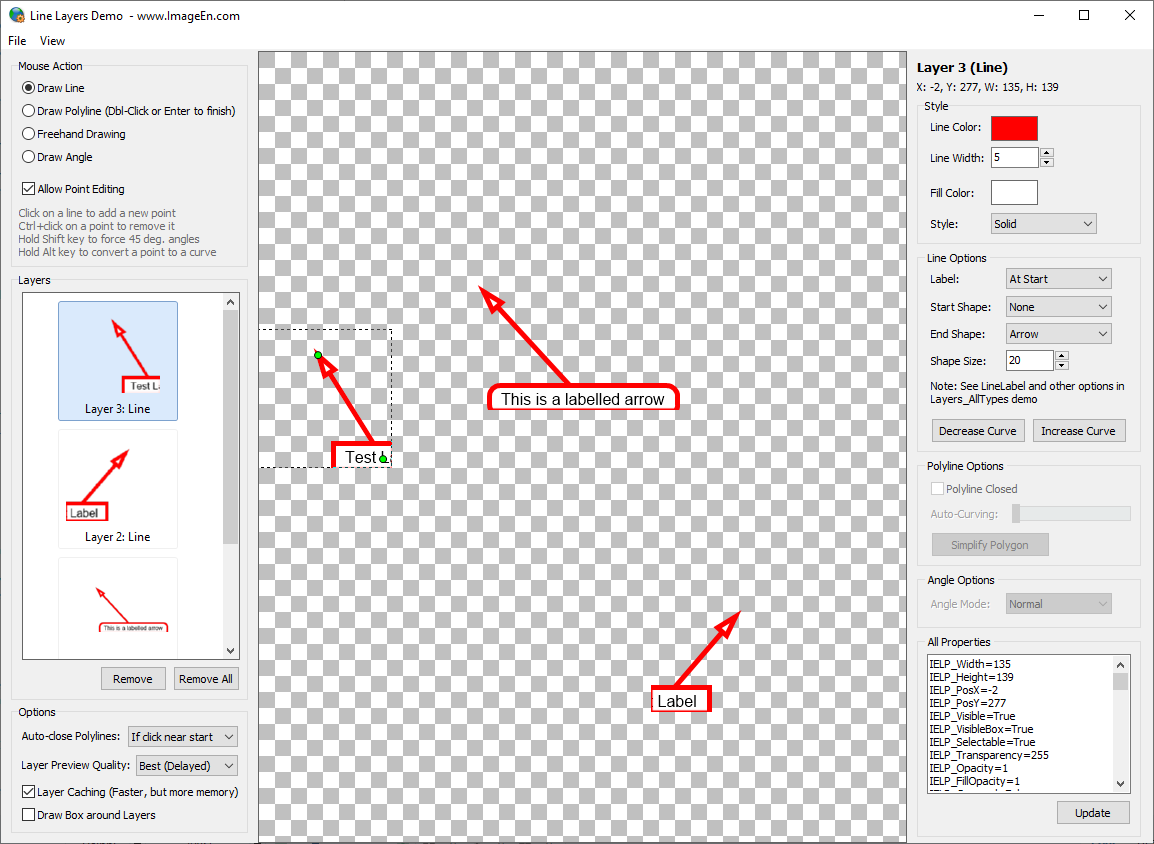

I created a labelled arrow using the Layers Demo - can't edit points in that demo so I save the IEN file and opened it in Line Layers demo. If you don't turn on Layer Caching its OK doesn't chop the label. If you turn on the layers caching it chops the label as you rotate the arrow head around. see attached screen shot.
 |
|
|
|
xequte
38683 Posts |
Posted - Sep 11 2024 : 02:01:06
|
Hi
Hmm, I'm still not seeing that, but we've updated all the layer caching code in the beta. Can you email me for the beta to confirm whether the issue has been resolved.
Nigel
Xequte Software
www.imageen.com
|
|
|
|
PaulF
United Kingdom
9 Posts |
Posted - Sep 11 2024 : 07:56:23
|
Hi Nigel, all good. Issue is no longer showing in the beta.
thanks
regards
Paul |
|
|
|
xequte
38683 Posts |
Posted - Sep 11 2024 : 16:23:25
|
Thanks for confirming, Paul
Nigel
Xequte Software
www.imageen.com
|
|
|
| |
