 ScrollBars with Layers		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

Dany

59 Posts
Posted - Oct 24 2024 :  14:49:09  Show Profile  Reply
Hi;

I set TImageEnView.Scrollbars to ssBoth. When I add a layer that goes out of the box, the scrollbars does no come visible.

I also tried to set ScrollBarsAlwaysVisible := True; in this case they are visible but they have no slider visible.

Is it a way to make them visible? or ... is it a way to have an auto-zoom or a zooming option to make all visible?.

I tried FIT, autoshrink and etc etc, but no case.

Thank you!

xequte

38608 Posts
Posted - Oct 24 2024 :  18:25:44  Show Profile  Reply
HI Dany

Please add loDynamicCanvas to LayerOptions:

http://www.imageen.com/help/TImageEnView.LayerOptions.html

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Dany

59 Posts
Posted - Oct 25 2024 :  04:41:56  Show Profile  Reply
I already tried loDynamicCanvas it before asking, nut when I use that option the component has a strange behavior. BTW, what happen with the Scrollbars?

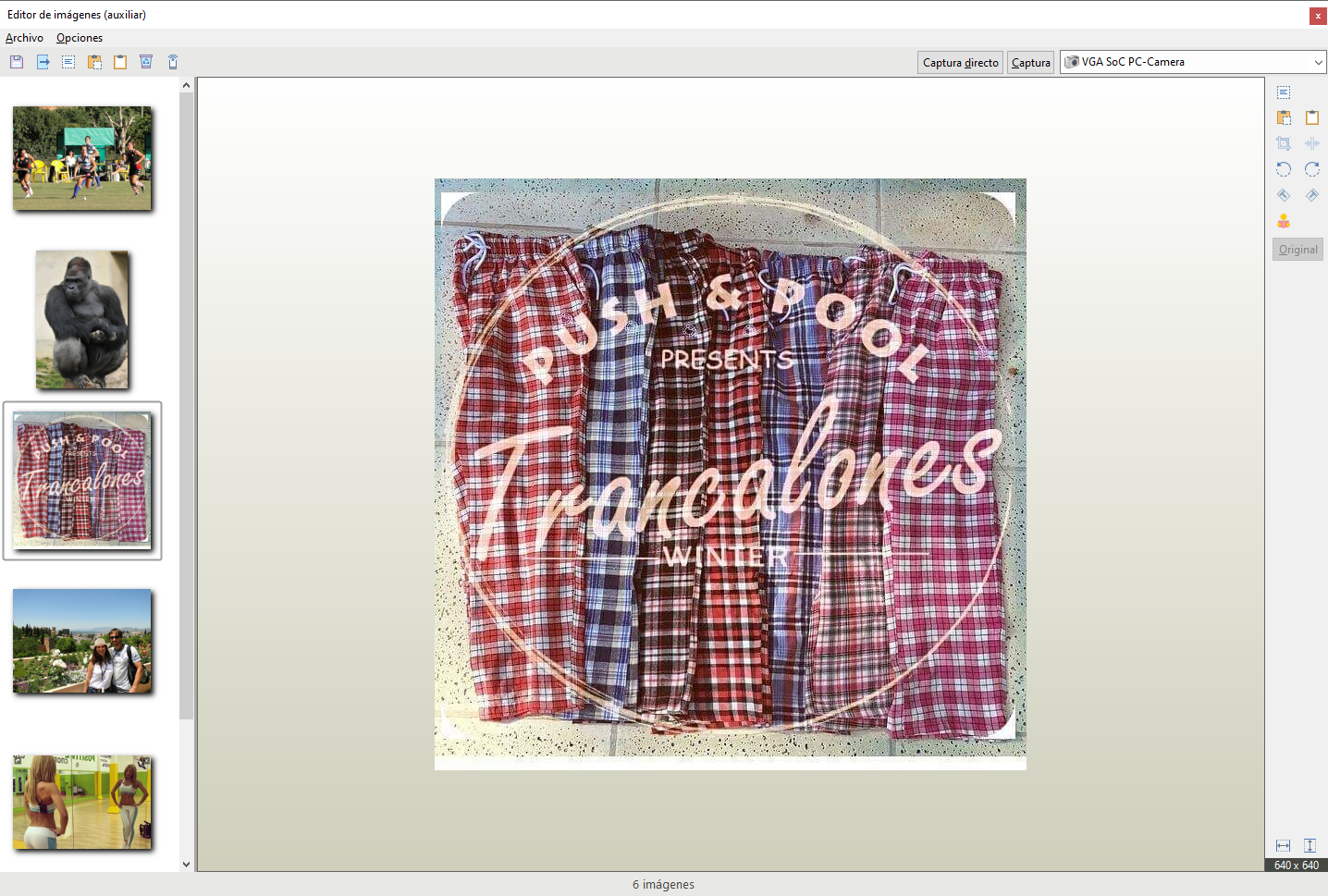

Here you can see an example: this is layer 0:

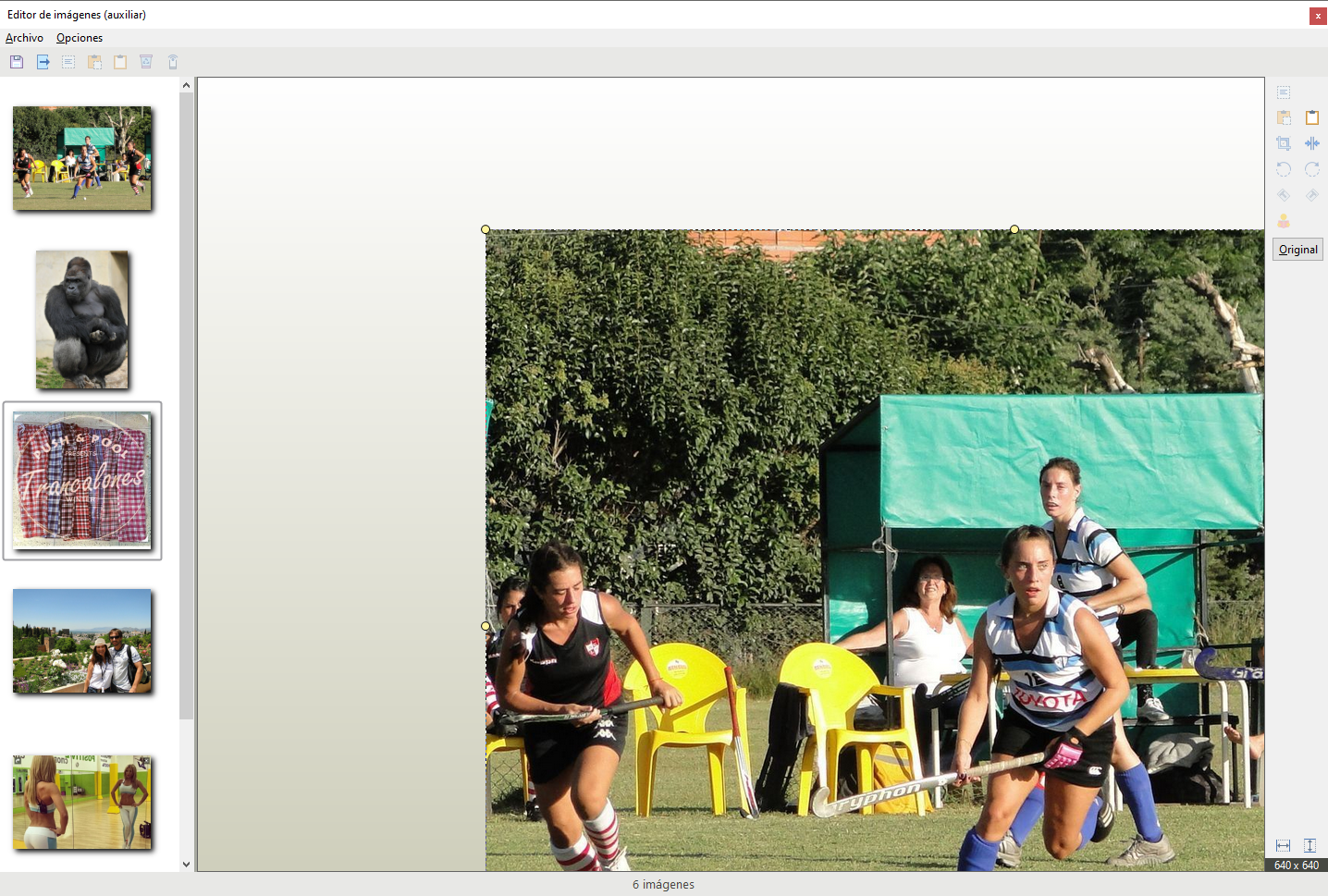

Then I add a layer with other image:



But no scrollbars visible, and also FIT does not help me to show the whole image.
Go to Top of Page

xequte

38608 Posts
Posted - Oct 25 2024 :  05:17:08  Show Profile  Reply
Hi

Yes, fit only applies to Layer 0. You should not use the Center with loDynamicCanvas.

Let me check what options are available when I'm back in the office in early November.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

Dany

59 Posts
Posted - Oct 25 2024 :  06:00:18  Show Profile  Reply
Let me say that now I see it fine with Center + loDynamicCanvas. Only thing that is missed (but I don't know why), are the ScrollBars.
Go to Top of Page

xequte

38608 Posts
Posted - Nov 05 2024 :  16:51:45  Show Profile  Reply
Hi Dany

I'm not able to reproduce that.

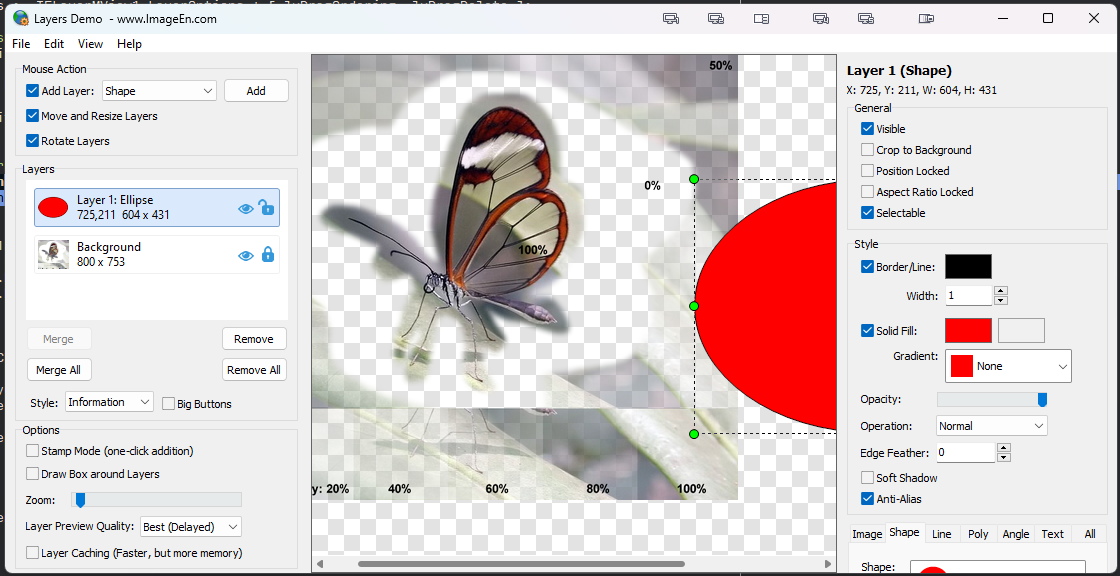

Please add this line to the create event for the demo: \Demos\LayerEditing\Layers_AllTypes\Layers.dpr

ImageEnView1.LayerOptions := ImageEnView1.LayerOptions + [loDynamicCanvas];

Load a background image, and then add a shape and drag it out of view. Does the scrollbar appear?

Does View > Zoom to Fit correctly display all content?



Nigel
Xequte Software
www.imageen.com
Go to Top of Page
