jeffp

USA
58 Posts

Posted - Dec 13 2024 : 14:13:57

I'm trying to create a new text annotation with the PdfViewer.

The following code adds the annotation, BUT I can't seem to see the default text OR click into the annotation and edit or add more text.

FViewer.PdfViewer.Annotations.NewTextAnnotation(DR, 'Add text here');

jp

xequte

38682 Posts

Posted - Dec 15 2024 : 22:52:18

Hi Jeff

A text annotation is not visible as text (unlike a text object). It appears as a hover hint:

To show annotations, iepoAnnotations must be specified in ImageEnView1.PdfViewer.Options (which is the default).

https://www.imageen.com/help/TIEPdfViewer.Options.html

Nigel
Xequte Software
www.imageen.com

jeffp

USA
58 Posts

Posted - Dec 16 2024 : 09:58:28

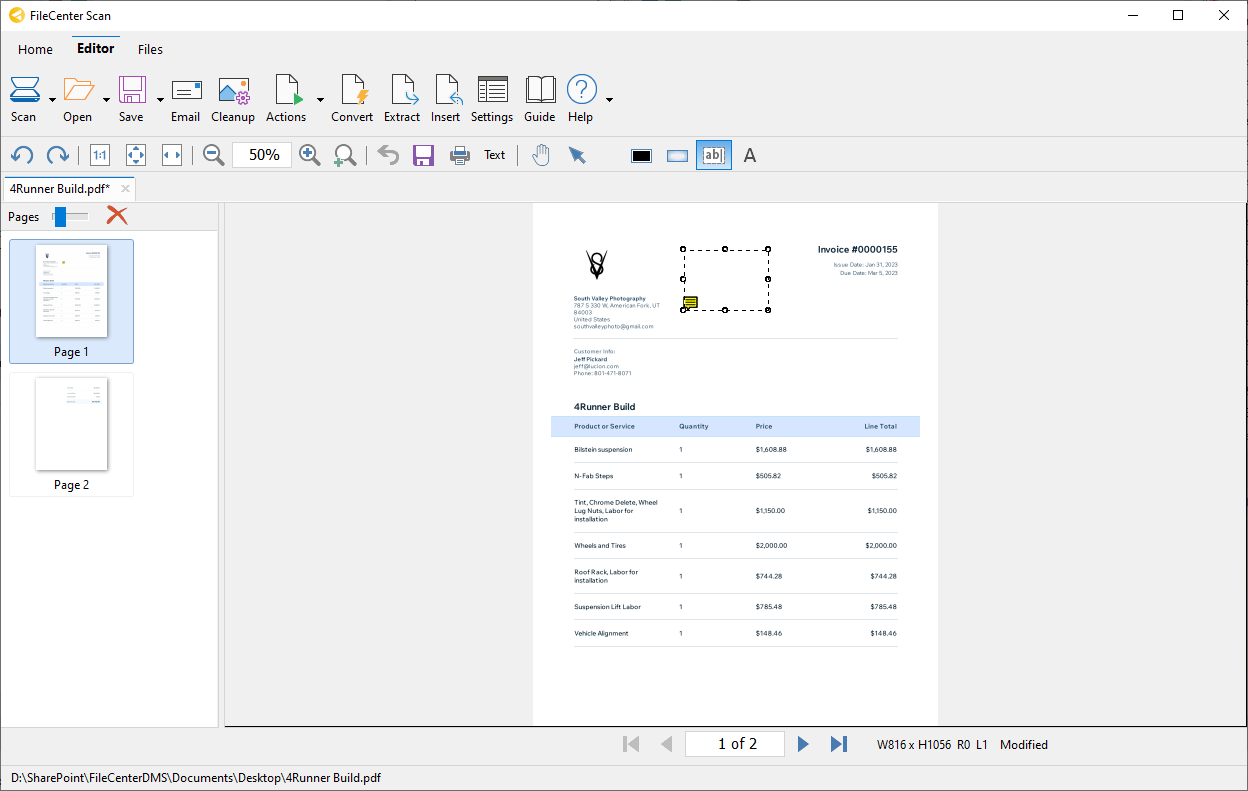

I do have that in PdfEditor.Options. Here's what it looks like. The annotation is there. I just can't click into it and add text.

jp

xequte

38682 Posts

Posted - Dec 16 2024 : 16:43:39

See the annotations demo which allows editing of the text in annotations:

\Demos\PDF\PDFAnnotations\PDFAnnotations.dpr

Nigel
Xequte Software
www.imageen.com

jeffp

USA
58 Posts

Posted - Dec 16 2024 : 16:59:54

I did. I can't double click into that text annotation either. I'm I just not understanding how the PDF text annotation works. I'm expecting something similar to the image layer text where I draw a rectangle and then I click into it to start typing text.

jp

xequte

38682 Posts

Posted - Dec 17 2024 : 00:33:40

Hi Jeff

There is no support at this time for displaying an editor when editing a text object or annotation. I've added it to the to-do list.

Nigel
Xequte Software
www.imageen.com
