 TIECanvas.Arc Parameters		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

w2m

USA
1990 Posts
Posted - Nov 24 2012 :  08:42:07  Show Profile  Reply
How do you fill the parameters? How is X1, Y1, X2, Y2, X3, Y3, X4, Y4 defined? Is X1,Y1 the start point (Top-left) and X2,Y2 (bottom-right) the rect where the pie is drawn? What is X3,Y3 and X4,Y4?

procedure TIECanvas.Arc(X1, Y1, X2, Y2, X3, Y3, X4, Y4: Integer);

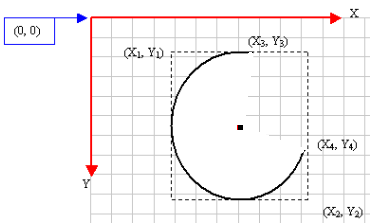

Maybe a simple drawing similar to this would make it easier to understand the parameters?



William Miller

w2m

USA
1990 Posts
Posted - Nov 26 2012 :  14:16:27  Show Profile  Reply
A little help please...

William Miller
Go to Top of Page

xequte

38616 Posts
Posted - Nov 27 2012 :  02:47:12  Show Profile  Reply
Sorry for the delay, William, we're busy with an update (there are some cool features in this one).

TIECanvas.Arc uses the same parameters as TCanvas.Arc:

http://docs.embarcadero.com/products/rad_studio/delphiAndcpp2009/HelpUpdate2/EN/html/delphivclwin32/Graphics_TCanvas_Arc.html


Nigel
Xequte Software
www.xequte.com
nigel@xequte.com
