 IP Camera acquisition		  New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

chouk

Algeria
28 Posts
Posted - Oct 09 2022 :  13:23:00  Show Profile  Reply
Hi,

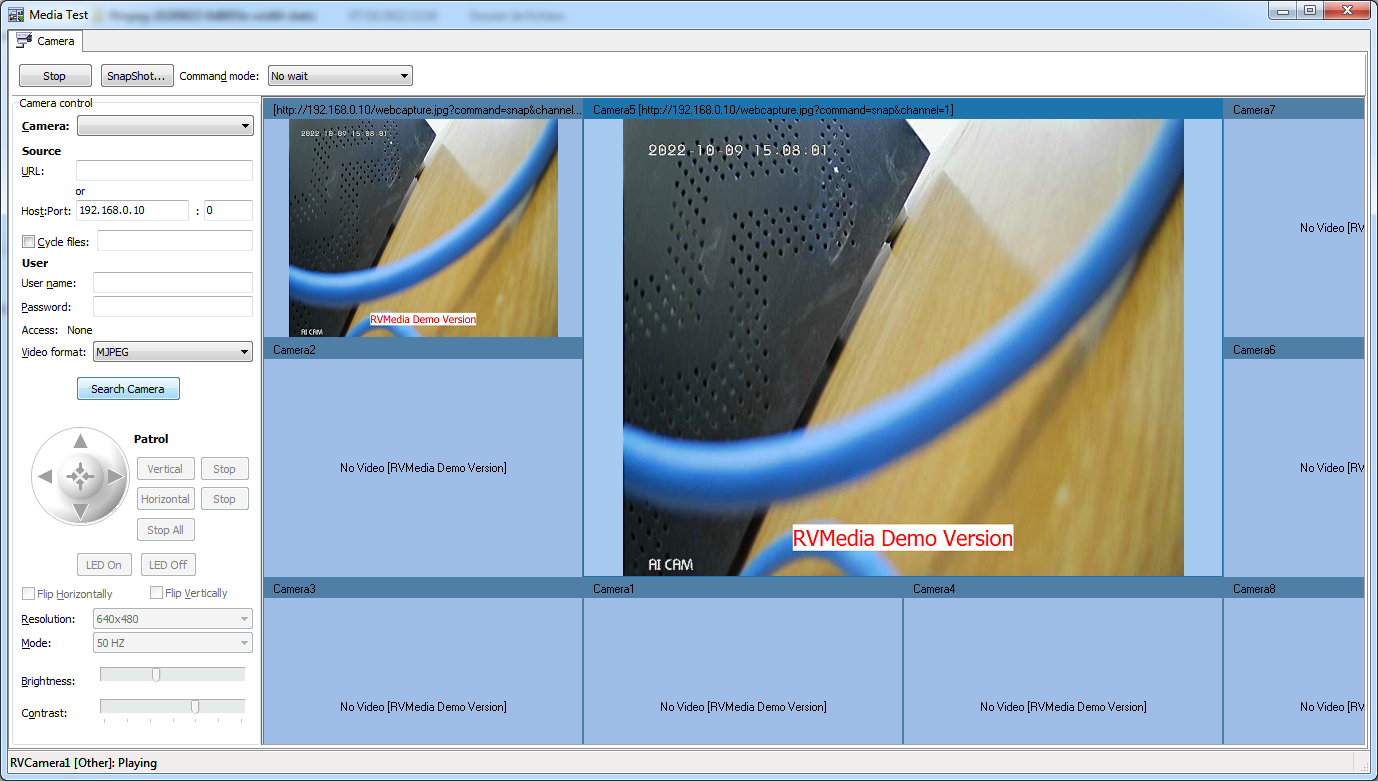

I tested the RVMedia components to get video acquisition from ip camera



As you see only IP adress is required.
I can't have the same result with Imageen



What wrong ?
Thank's,
Chouk

xequte

38611 Posts
Posted - Oct 09 2022 :  20:12:55  Show Profile  Reply
Hi Chouk

It is only a simple capture demo, so you will need to configure it for specific cameras.

Did you type in the stream address:

/webcapture.jpg?command=snap&channel=1

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

chouk

Algeria
28 Posts
Posted - Oct 10 2022 :  02:48:10  Show Profile  Reply
Hi,
Thank's for your reply,
I tryed with "/webcapture.jpg?command=snap&channel=1" it's not work.

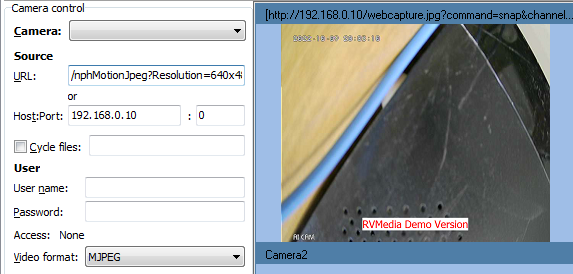

I tried with the parameter used for the imageen example in rvmedia it's work

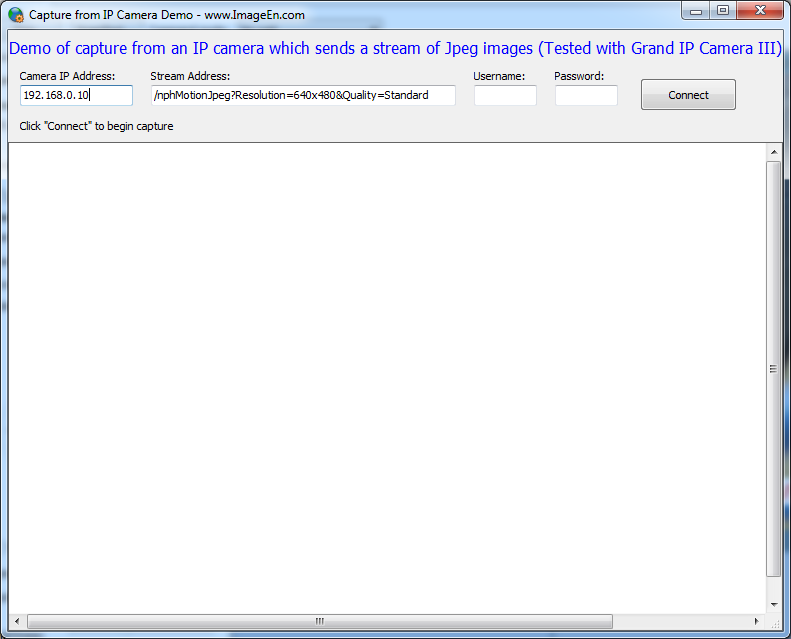

Parameters : 192.168.0.10/nphMotionJpeg?Resolution=640x480&Quality=Standard




What's config parameters can i check for ip camera.
Thank's
Chouk
Go to Top of Page

xequte

38611 Posts
Posted - Oct 10 2022 :  17:39:55  Show Profile  Reply
Sorry, I cannot speak for that camera.

If you email me a public IP address for the camera, I can test it from here.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

chouk

Algeria
28 Posts
Posted - Oct 26 2022 :  13:39:12  Show Profile  Reply
Hi,

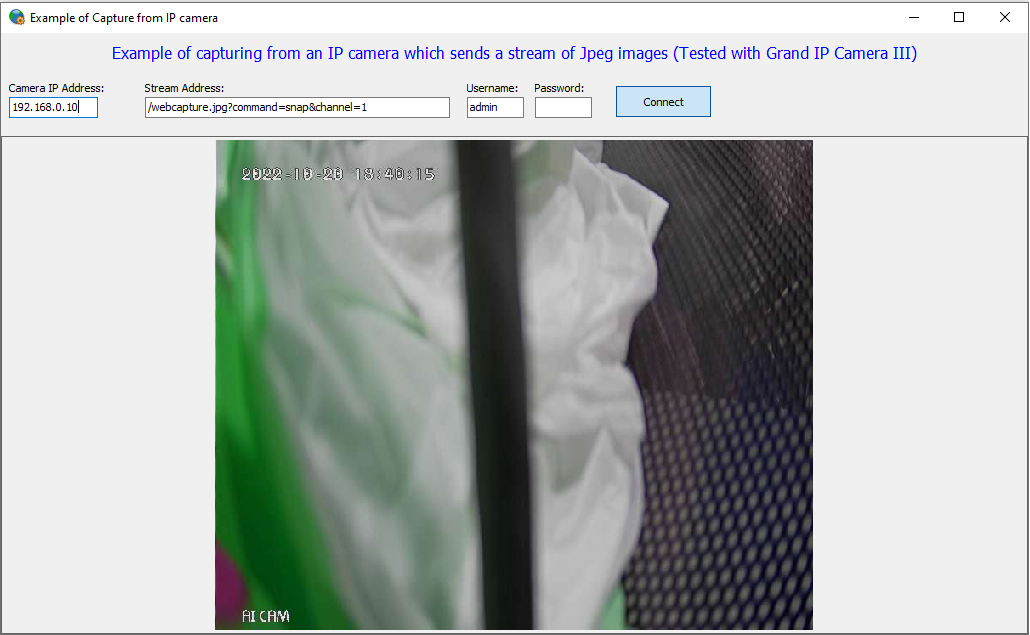

Now with the test:
webcapture.jpg?command=snap&channel=1
I connect but there is only a freeze frame (one frame).
I tried with 192.168.0.10:80 (port 80) i get same result.



I don't know if it can help i can connect with RTSP :
rtsp://192.168.0.10:554/user=admin_password=_channel=1_stream=0.sdp?real_stream
It's Work fine.

I think that the problem is in the stream adress.

Thanks

Chouk
Go to Top of Page

xequte

38611 Posts
Posted - Oct 30 2022 :  20:56:13  Show Profile  Reply
Hi Chouk

The IP address 192.168.0.10 is local to your network, so we cannot connect to it.


Nigel
Xequte Software
www.imageen.com
Go to Top of Page
