 Layer dragging
 New Topic  Reply to Topic
Author Previous Topic Topic Next Topic

PeterPanino

933 Posts

Posted - Feb 28 2024 :  15:16:35  Show Profile  Reply

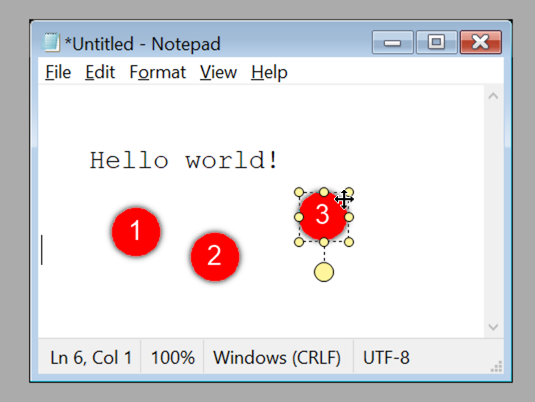

I am trying to insert consecutive numbers to my screenshots:

procedure TformPreview.mInsertNumberClick(Sender: TObject);
begin
  // Append a Number text layer:
  ImageEnViewPreview.LayersAdd(ielkText);
  with TIETextLayer(ImageEnViewPreview.CurrentLayer) do
  begin
    Text := '1';
    BorderWidth := 0;
    FillColor := clRed;
    Font.Size := 16;
    Font.Color := clWhite;
    Alignment := iejCenter;
    Layout := ielCenter;
    BorderShape := iesEllipse;
    SoftShadow.Enabled := True;
    Width  := 50;
    Height := 50;
    AspectRatioLocked := True;
  end;
end;




However, these layers can be dragged only at their edges - which many users find difficult to handle!

How can these layers made to be dragged on the entire shape?

PeterPanino

933 Posts

Posted - Feb 29 2024 :  11:00:27  Show Profile  Reply
I have now discovered that when I include [mlEditLayerPoints], I can drag text and rectangle layers not only on their edge but also anywhere on the layer!

Is this a side effect?
Go to Top of Page

xequte

38608 Posts

Posted - Feb 29 2024 :  14:11:21  Show Profile  Reply
Hi Peter

Have you included mlMoveLayers?

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

PeterPanino

933 Posts

Posted - Mar 01 2024 :  02:45:09  Show Profile  Reply
Hi Nigel

Yes, mlMoveLayers is included as well.
Go to Top of Page

xequte

38608 Posts

Posted - Mar 02 2024 :  20:27:01  Show Profile  Reply
Hi Peter

Sorry, you also need to ensure that MouseInteractGeneral = []. Otherwise it will override mlMoveLayers.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page

xequte

38608 Posts

Posted - Mar 03 2024 :  16:00:44  Show Profile  Reply
Sorry, i should have mentioned that miSelect and mlMoveLayer can be used together, but in that configuration movement is possible only by clicking and dragging the edge of the current layer.

Nigel
Xequte Software
www.imageen.com
Go to Top of Page
